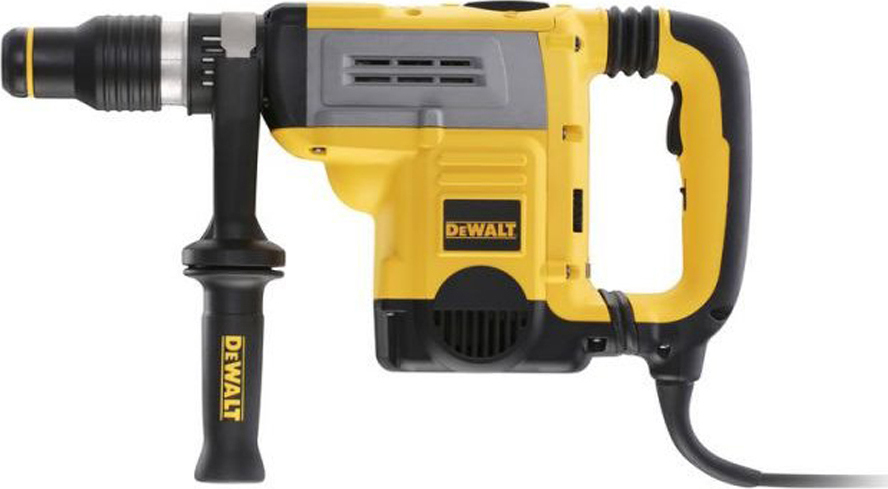

Pneumatic Hammer 6KG SDS-MAX 8J 1250W
Very fast drilling progress thanks to the new high performance engine and the hammer mechanism with excellent matching
Anti-rotation function UTC - prevents uncontrolled rotation of the tool (eg during a gunshot)
Safe and effortless work with low vibrations, via spring handle, which is disconnected from the machine
The electronic speed and stroke adjustment allows the perfect fit to the material to be processed
Turnstile for medium chisel work on masonry, stone and concrete
Optimized mechanical safety coupling ensures safe and secure use even with larger drilling diameters
The chain effectively reduces friction and wear
Oil lubrication always ensures the lubrication of the components and effectively dissipates the resulting heat
Effective protection against dust through an optimally sealed housing
Lower weight due to the hammer mechanism and the magnesium gearbox
Elastic handle and ergonomic, compact design with optimized center of gravity
The electronic visual inspection informs about the upcoming service work and the change of the carbon brush
> Power (watt) 1.250 |
> Standby speed (min-1) 210-415 |
> Standby speed (min-1) 1.430-2.840 |
> Single Impact Energy (EPTA 05/2009) (Joule) 8 |
> SDS max tool assembly |
> Optimal diameter range (mm) 25 - 35 |
> max. Possibility of drilling concrete (mm) 45 |
> max. Drilling penetration drill (mm) 65 |
> max. Drilling capacity (mm) 100 |
> Drilling holes 18 |
> Triaxial vibration Drilling with a hammer in concrete (m / s²): 8.7 |
> Uncertainty factor K1 (m / s²) 1.5 |
> LPA sound pressure level (dB (A)) 93.0 |
> LWA (dB (A)) 104.0 sound power level |
> Uncertainty factor (dB (A)) 3.0 |
> Weight (kg) 6.9 |
